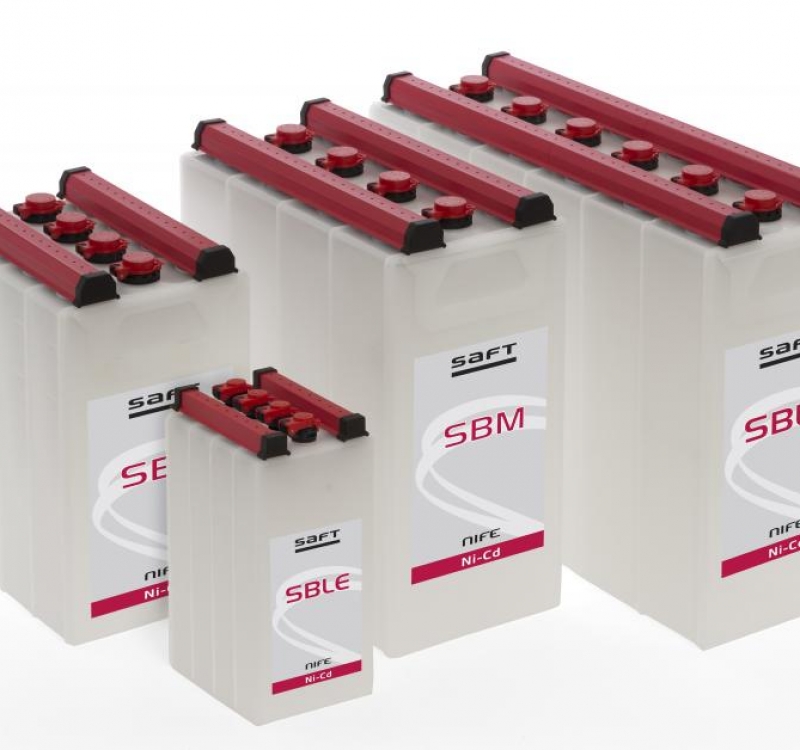

SBLE, SBM, SBH

Saft

Technical Specifications
SBLE blocks (L type)

  • Capacity range at C5 A rate: from 7.5 Ah to 1690 Ah in 58 capacity steps
  • Typical discharge range is from one hour to 100 hours
  • Operate in temperatures from - 20°C to + 50°C
  • Designed for applications where the battery is required to provide:
                 - a reliable source of energy over relatively long discharge periods
                 - a current that is relatively low in comparison with the total stored energy
                 - discharges are generally infrequent
  • Trouble-free long service life of 20 years or more

SBM blocks (M type)
  • Capacity range at C5 A rate: from 11 Ah to 1445 Ah in 68 capacity steps
  • Typical discharge range from 15 minutes to two hours
  • Operate in temperatures from - 20°C to + 50°C
  • Designed for applications where the batteries are usually required to sustain:
               - electrical loads for between 30 minutes to three hours
               - "mixed" loads involving a mixture of high and low discharge rates
               - frequent or infrequent discharges
  • Trouble-free long service life of 20 years or more

SBH blocks (H type)
  • Capacity at C5 A rate: from 8.3 Ah to 920 Ah in 51 capacity steps
  • Typical discharge range is from one second to 30 minutes
  • Operate in temperatures from - 20°C to + 50°C
  • Designed for applications demanding :
                - a relatively high current over short periods - usually less than 30 min duration
                - applications can have frequent or infrequent discharges
  • Trouble-free long service life of 20 years or more
