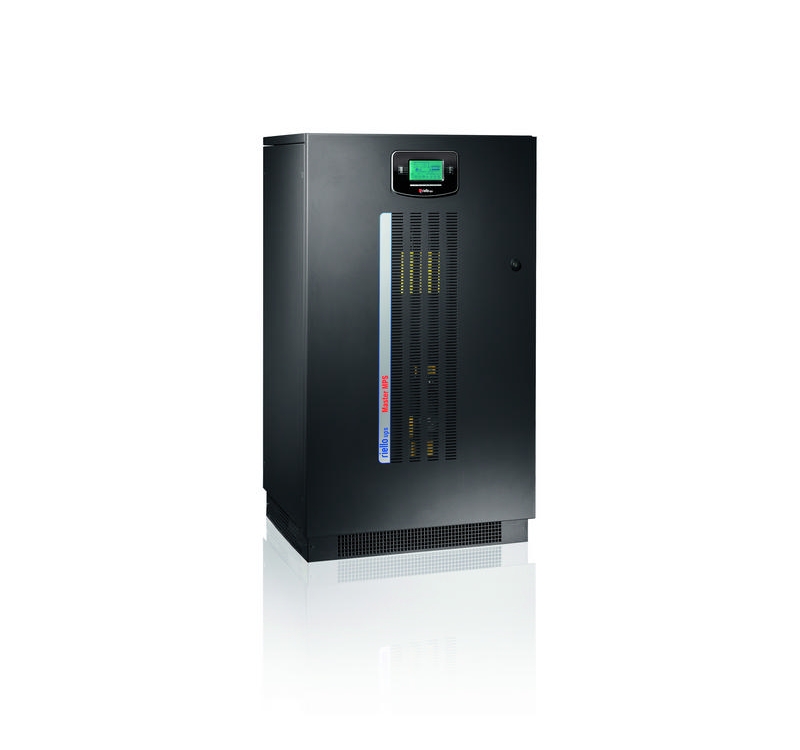

UPS Riello MPM 10

Riello UPS Tag1 UPS Tag 2

Absolute protection

Master MPS series UPS devices ensure maximum protection and power quality for any type of load, especially for mission critical applications, security systems and electro-medical equipment, industrial processes and telecommunications.
Master Plus is an on-line double conversion UPS (class VFI SS 111 in accordance with IEC EN 62040-3) with a transformer isolated inverter.




Request Information
Models MPM 10
INPUT
Voltage 380 - 400 - 415 Vac three-phase Vac
Frequency 45 - 65 Hz
Frequency tolerance ± 2% (selectable from ± 1% to ± 5% from front panel)
Soft start 0 - 100% in 120’’ (selectable)
Voltage Range 400 V + 20% /- 25%
BY PASS
Rated voltage 360-400-420 Vac three-phase + N
Rated frequency 50 or 60 Hz (selectable)
OUTPUT and INVERTER OUTPUT
Rated power 10000 VA
Active power 9000 W
Output Voltage 220 - 230 - 240 Vac single-phase + N (selectable)
Crest factor (Ipeak/Irms) 3:1
Static stability ± 1%
Dynamic stability ± 5% in 10 ms
Frequency 50 or 60 Hz (selectable)
Voltage distortion with distorcing load < 3% with non-linear load
Voltage distortion with linear load < 1% with linear load
Frequency stability 0.05%
OVERLOAD TIMES
100% < Load < 110% 60'
125% = Load < 150% 10'
Load = 150% 1'
BATTERIES
Type VRLA AGM / GEL; NiCd; Supercaps; Li-ion; Flywheels
ENVIRONMENTAL
Color Dark grey RAL 7016
Communication Double RS232 + dry contacts + 2 slots for communications interface
Safety compliance EN 62040-1:2008; EN 62040-1/EC:2009; EN 62040-1/A1:2013 and Directive 2014/35/EU
EMC conformance EN 62040-2 and Directive 2014/30/EU
Protection rating IP20
Line-Interactive/Smart Active efficiency up to 98%
Noise 60 dBA
Operating temperature 0 °C/ +40 °C
Relative humidity <95% non-condensing
DATA
Weight 200 kg
Dimensions (h w d) 1400 x 555 x 740 mm
