Master MPS
3:1, 1:3
Riello
Total protection

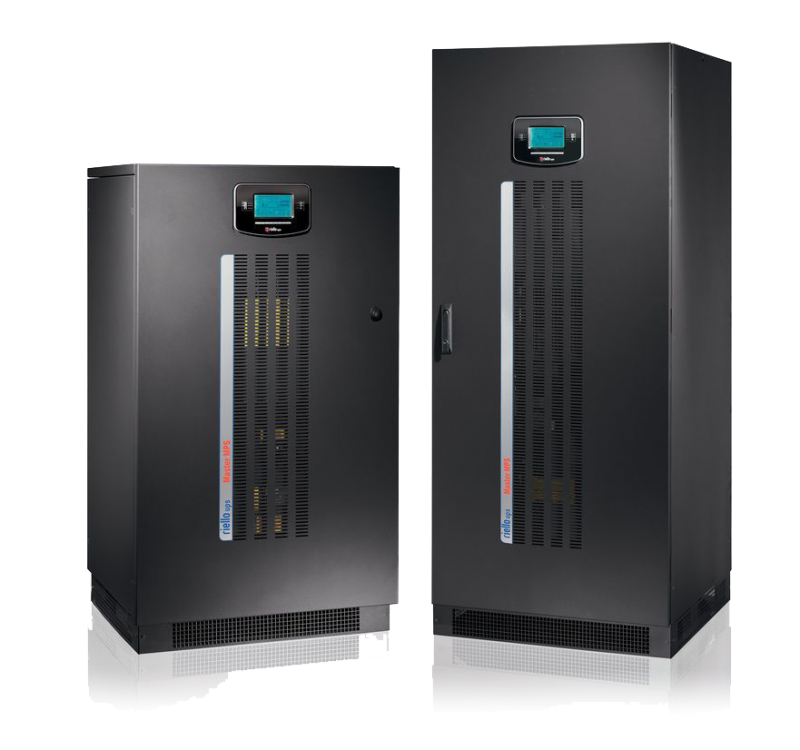

Master MPS series UPS provide maximum protection and power quality for mission critical loads, including data centres, industrial processes, telecommunications, security and electro-medical systems. Master MPS is an on-line double conversion UPS (VFI SS 111 - IEC EN 62040-3) with a transformer isolated inverter.
The Master MPS range includes three-phase input and single-phase output versions from 10 to 100 kVA, and three-phase input and output versions from 10 to 800 kVA. All versions are provided with a 6-pulse thyristor-based recti er, with or without optional harmonic lters. A 12-pulse thyristor-based recti er is available on request for the 60 and 80 kVA versions (provided as standard for MPT 800), with or without optional harmonic lters.
Request Information
Easy source
Master MPS makes supplying the UPS from generator sets and MT/BT transformers simpler and more e cient, reducing power loss in the system and coils, correcting the power factor and eliminating current harmonics created by the loads supplied by the UPS.
In addition to this, the progressive recti er start-up (power walk-in) and the option to reduce battery charging currents, allow for a reduction in the input current uptake. This means less demand on the source, which is particularly useful when the source is a generator set.
Power continuity
For years, Riello UPS has developed and supplied solutions for dealing with the di erent requirements and the problems that inevitably arise in critical applications. Riello UPS o ers exible, high-availability, solutions that are able to adapt to di erent system structures and critical levels.
Riello UPS creates UPS systems that can tolerate a number of component or subsystem failures, while continuing to operate normally, providing power without interruption.
This is achieved by careful design, installing redundant elements, eliminating common failure points, scheduling maintenance activities and controlling and supervising the system operating parameters and environment. The TEC service team is ready to provide guidance and advice on projects.
Flexibility
Master MPS is suitable for a wide range of applications including IT and the most demanding industrial environments. The UPS is suitable for power capacitive loads such as blade servers, without any reduction in active power, from 0.9 leading to 0.8 lagging.
With a broad range of accessories and options, complex con gurations and system architectures can be achieved to guarantee maximum power availability and the option to add new UPS without interruption to existing users.
Using the Riello UPS Group Synchroniser (UGS) and Parallel Systems Joiner (PSJ), sophisticated inter group parallel and redundant systems can be achieved to provide the highest possible levels of resilience and availability.
Battery care system: maximum battery care Normally the batteries are kept charged by the recti er; when mains power fails, the UPS uses this energy source to power the consumers. Proper battery care is therefore critical to ensuring correct UPS operation under emergency conditions. The Riello UPS battery care system consists of a series of functions designed to optimise battery management and achieve the best performance and operating life possible:
• Dual level charging regime to optimise
recharge currents and reduce charge times
• Temperature compensation and deep discharge protection to reduce battery ageing and improve battery life • Charge blocking system to reduce electrolyte consumption and lengthen the life of VRLA batteries • Battery tests to diagnose, in advance, any reduction in performance or problems with the batteries.
Master MPS is also compatible with di erent battery technologies: vented open lead acid, VRLA AGM, Gel, NiCd, Flywheels, Supercaps and Lithium.
Easy installation

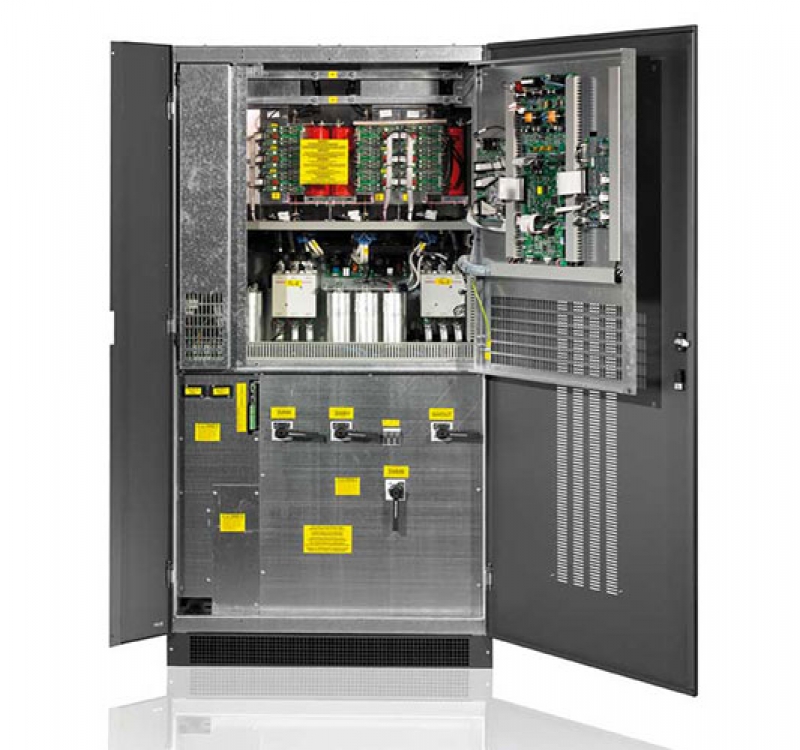

Master MPS requires a very small space for installation (only 0.64 m2 for a 200kVA system); in addition, front access allows for the servicing of all major components from the front panel, making side access unnecessary. In addition, front access allows servicing of all major components from the front panel, making side access unnecessary. Master MPS requires minimal space for access, utilising top-cabinet ventilation and front panel access.
Speci c solutions
The UPS can be adapted to meet the most speci c requirements. Contact our TEC team to discuss speci c solutions and options not listed in this catalogue.
Advanced communications
• Compatible with TeleNetGuard for remote Detail of connection area monitoring. • Advanced multi-platform communications for all operating systems and network environments: PowerShield3 monitoring and shutdown software included, with SNMP agent, for Windows operating systems 8, 7, 2008, Vista, 2003, XP, Linux, Mac OS X, Sun Solaris, Linux, Novell and other Unix operating systems
• The UPS is provided with a cable for direct connection to a PC (Plug and Play)
• Double RS232 serial port • Communications slot for network adapter installation; ESD contact (Emergency Switching Device) for switching o the UPS by remote emergency button
• Remote display panel with graphic display.
Maximum reliability and availability • Distributed or centralised parallel con guration of up to 8 units per redundant (N+1) or power parallel system. Parallel con gurations using models with di erent power ratings are also possible.
• Hot System Expansion (HSE): allows the addition of a further UPS into an existing system, without the need to switch o the existing UPS or transfer them to bypass mode. This guarantees maximum load protection, even during maintenance and system expansion.
• Maximum levels of availability, even in the event of an interruption to the parallel bus cable: the system is “FAULT TOLERANT”. It is not a ected by connection cable faults and continues powering the load without disruption, signalling an alarm condition.
• E ciency Control System (ECS): a system to optimise the operating e ciency of parallel systems, according to the power
required by the load. N +1 redundancy is guaranteed, with every UPS working in parallel at the best load level possible to achieve higher overall e ciency.
Options
• UPS Group Synchroniser (UGS) Allows two or more non-parallel UPS devices to remain synchronised even during mains power failure. The UGS also enables a Riello UPS to be synchronised with another power source The PSJ connects the remaining UPS, to that is independent and of a di erent the other parallel group via an external power rating. bypass, in order to continue to guarantee
• Parallel Systems Joiner (PSJ) load redundancy. Allows two groups of UPS to be connectedin parallel whilst operating, in the event ofmaintenance (with no interruption to the output), using a power coupling switch. Should one of the UPS in one of the parallel groups fail, it is automatically excluded.
Master MPS makes supplying the UPS from generator sets and MT/BT transformers simpler and more e cient, reducing power loss in the system and coils, correcting the power factor and eliminating current harmonics created by the loads supplied by the UPS.
In addition to this, the progressive recti er start-up (power walk-in) and the option to reduce battery charging currents, allow for a reduction in the input current uptake. This means less demand on the source, which is particularly useful when the source is a generator set.
Power continuity
For years, Riello UPS has developed and supplied solutions for dealing with the di erent requirements and the problems that inevitably arise in critical applications. Riello UPS o ers exible, high-availability, solutions that are able to adapt to di erent system structures and critical levels.
Riello UPS creates UPS systems that can tolerate a number of component or subsystem failures, while continuing to operate normally, providing power without interruption.
This is achieved by careful design, installing redundant elements, eliminating common failure points, scheduling maintenance activities and controlling and supervising the system operating parameters and environment. The TEC service team is ready to provide guidance and advice on projects.
Flexibility
Master MPS is suitable for a wide range of applications including IT and the most demanding industrial environments. The UPS is suitable for power capacitive loads such as blade servers, without any reduction in active power, from 0.9 leading to 0.8 lagging.
With a broad range of accessories and options, complex con gurations and system architectures can be achieved to guarantee maximum power availability and the option to add new UPS without interruption to existing users.
Using the Riello UPS Group Synchroniser (UGS) and Parallel Systems Joiner (PSJ), sophisticated inter group parallel and redundant systems can be achieved to provide the highest possible levels of resilience and availability.
Battery care system: maximum battery care Normally the batteries are kept charged by the recti er; when mains power fails, the UPS uses this energy source to power the consumers. Proper battery care is therefore critical to ensuring correct UPS operation under emergency conditions. The Riello UPS battery care system consists of a series of functions designed to optimise battery management and achieve the best performance and operating life possible:
• Dual level charging regime to optimise
recharge currents and reduce charge times
• Temperature compensation and deep discharge protection to reduce battery ageing and improve battery life • Charge blocking system to reduce electrolyte consumption and lengthen the life of VRLA batteries • Battery tests to diagnose, in advance, any reduction in performance or problems with the batteries.
Master MPS is also compatible with di erent battery technologies: vented open lead acid, VRLA AGM, Gel, NiCd, Flywheels, Supercaps and Lithium.
Easy installation
Master MPS requires a very small space for installation (only 0.64 m2 for a 200kVA system); in addition, front access allows for the servicing of all major components from the front panel, making side access unnecessary. In addition, front access allows servicing of all major components from the front panel, making side access unnecessary. Master MPS requires minimal space for access, utilising top-cabinet ventilation and front panel access.
Speci c solutions
The UPS can be adapted to meet the most speci c requirements. Contact our TEC team to discuss speci c solutions and options not listed in this catalogue.
Advanced communications
• Compatible with TeleNetGuard for remote Detail of connection area monitoring. • Advanced multi-platform communications for all operating systems and network environments: PowerShield3 monitoring and shutdown software included, with SNMP agent, for Windows operating systems 8, 7, 2008, Vista, 2003, XP, Linux, Mac OS X, Sun Solaris, Linux, Novell and other Unix operating systems
• The UPS is provided with a cable for direct connection to a PC (Plug and Play)
• Double RS232 serial port • Communications slot for network adapter installation; ESD contact (Emergency Switching Device) for switching o the UPS by remote emergency button
• Remote display panel with graphic display.
Maximum reliability and availability • Distributed or centralised parallel con guration of up to 8 units per redundant (N+1) or power parallel system. Parallel con gurations using models with di erent power ratings are also possible.
• Hot System Expansion (HSE): allows the addition of a further UPS into an existing system, without the need to switch o the existing UPS or transfer them to bypass mode. This guarantees maximum load protection, even during maintenance and system expansion.
• Maximum levels of availability, even in the event of an interruption to the parallel bus cable: the system is “FAULT TOLERANT”. It is not a ected by connection cable faults and continues powering the load without disruption, signalling an alarm condition.
• E ciency Control System (ECS): a system to optimise the operating e ciency of parallel systems, according to the power
required by the load. N +1 redundancy is guaranteed, with every UPS working in parallel at the best load level possible to achieve higher overall e ciency.
Options
• UPS Group Synchroniser (UGS) Allows two or more non-parallel UPS devices to remain synchronised even during mains power failure. The UGS also enables a Riello UPS to be synchronised with another power source The PSJ connects the remaining UPS, to that is independent and of a di erent the other parallel group via an external power rating. bypass, in order to continue to guarantee
• Parallel Systems Joiner (PSJ) load redundancy. Allows two groups of UPS to be connectedin parallel whilst operating, in the event ofmaintenance (with no interruption to the output), using a power coupling switch. Should one of the UPS in one of the parallel groups fail, it is automatically excluded.
Master MPS 10-100 kVA, 10-800 kVA
