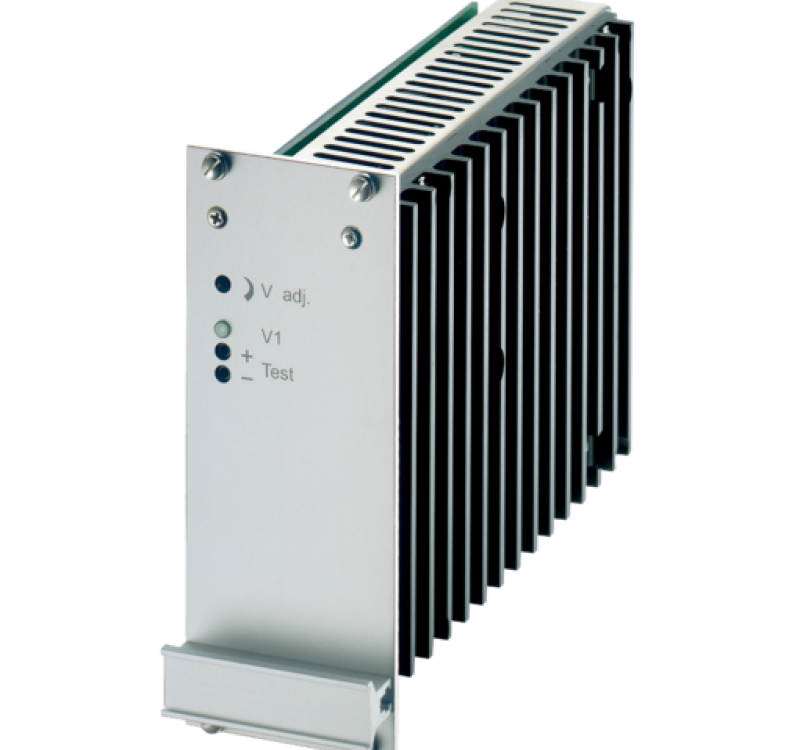

Series CH / CP / BP 200

AC/DC Power Supplies & Battery Chargers

Schaefer

  • Input / Output isolation
  • Continuous short circuit protection
  • Overvoltage protection with auto restart
  • Operational from – 40 to +75 °C
  • Industrial grade components
  • Compact and robust design
  • Natural convection (except for series C56xx and C57xx)

  • DC Input voltage: 10 - 800V DC
  • AC Input voltage: 115 / 230V AC, single phase (with or without PFC) or 200 / 400 / 480V AC, three phases
  • AC Input frequency: with PFC 47 - 65Hz, without PFC 47 - 400Hz
  • Output voltage: 5 / ... / 400V DC
  • Output current: up to 500A
  • Output power: 100W - 7.5kW
