Battery Charger/DC UPS

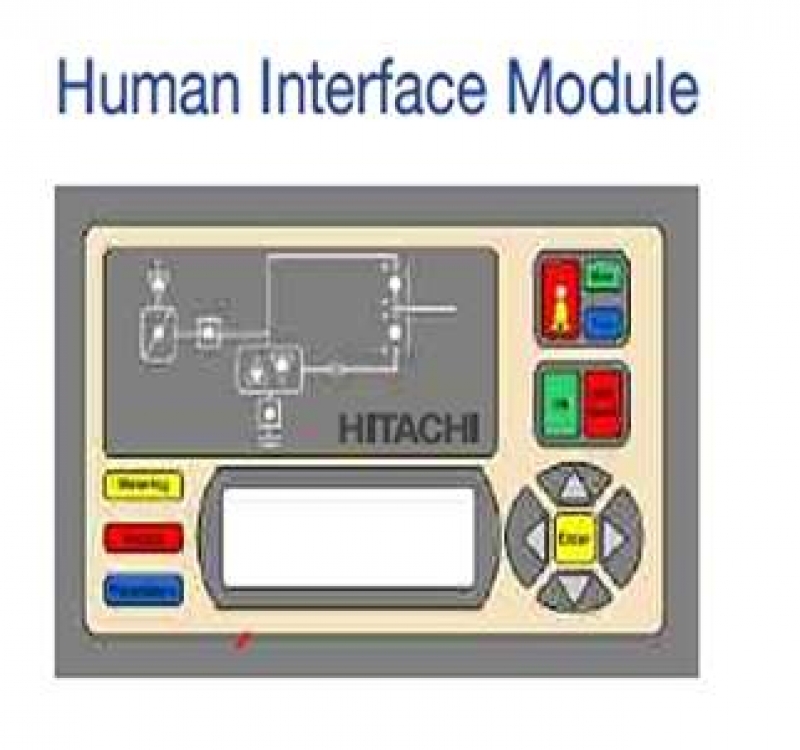

The Stallion series of advanced battery chargers deploy Thyristor based technology and Digital Signal Processing Control (DSP) to achieve the desired DC output. Power required is adjusted by using phase control technology actuated by the DSP based control card. The DSP based control system enables userfriendly setting via the keypad on the front of the panel.


Request Information
 Technical Specifications

           Charger Type                                    Stallion Battery Charger
Applicable Standard IEC-62040-3
Charger Characteristics                                                    Constant voltage / constant current with current  limit

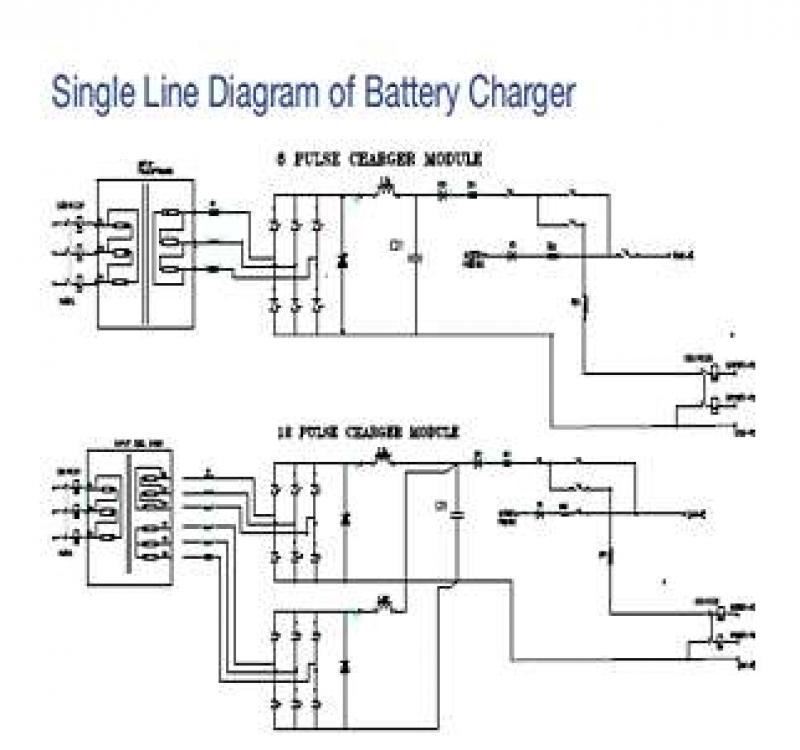

Control Technology DSP based digital control, 6-Pulse Charger
Input Voltage -230 +15% to - 20%, Three phase (Optional : Single Phase Input)*
Input Frequency 50 Hz ± 10%
Output Voltage 24vDC, 48vDC, 110vDC, 120vDC, 220vDC, 240vDC, 360vDC
Output Current Up to 1200AMP
Ripple Voltage ± 1% RMS with battery connected
± 2% RMS without battery connected
Protection Input Switch / MCCB with fuse
Output MCB / MCCB
Battery fuse / Switch / MCB / MCCB
Current limit
Soft start
Overload protection
Reverse polarity protection
DC ground fault protection
