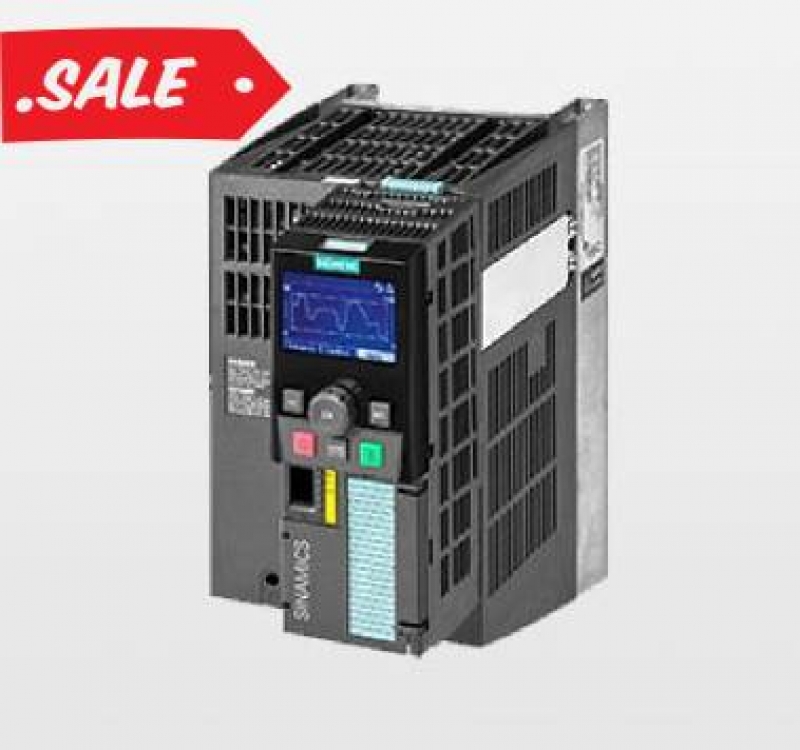

SINAMICS G120
The modular converter – space-saving, safe and rob
The converter from 0.55 to 250 kW for versatile applications
With the second generation SINAMICS G120, Siemens presents a modular converter with higher power density and a space-saving frame size.
The redesigned converter series is now available in three voltage variants for connection to 200 V, 400 V and 690 V power supply networks.
Request Information
With lots of innovative functions – all major facts at a single glance
|
Voltage |
1/3AC 200 … 240 V +/- 10 % |
|
Power range |
0.55 kW – 250 kW (LO) |
|
Degree of protection |
IP20 |
|
Environmental class |
Class 3C2, (3C3 with SIPLUS) |
|
Ambient temperature |
0 to 50°C |
|
EMC |
According to IEC 61800-3 up to Category C2 |
|
Standards |
CE, UL, cUL, c-Tick |
|
Safety Technology |
Safety Integrated: STO (SIL 3, PL e, Kat. 3), SS1, SBC, SLS, SDI, SSM, PROFIsafe |
|
Communication |
PROFINET, PROFIBUS, USS, Modbus, Ethernet IP, BACnet |
|
Control procedure |
U/f, Flux Current Control, vector control with and without encoder |
|
Functions |
Basic positioning function with Epos, regenerative capability through efficient infeed technology (Power Modules PM250 only), PROFIenergy, PROFIdrive |
